SS304 & SS316 · NBC 2016 · CPWD Spec · Jeedimetla
Handrail Manufacturers
Hyderabad — Commercial
& Institutional Systems
Wall-mounted and post-mounted SS handrail systems for builders, architects, PMC consultants, hospital facilities teams, and government project contractors. IS 875, NBC 2016, and CPWD compliant fabrication from Jeedimetla since 1998.
IS 875 Compliant Handrail Systems by Sun Railings

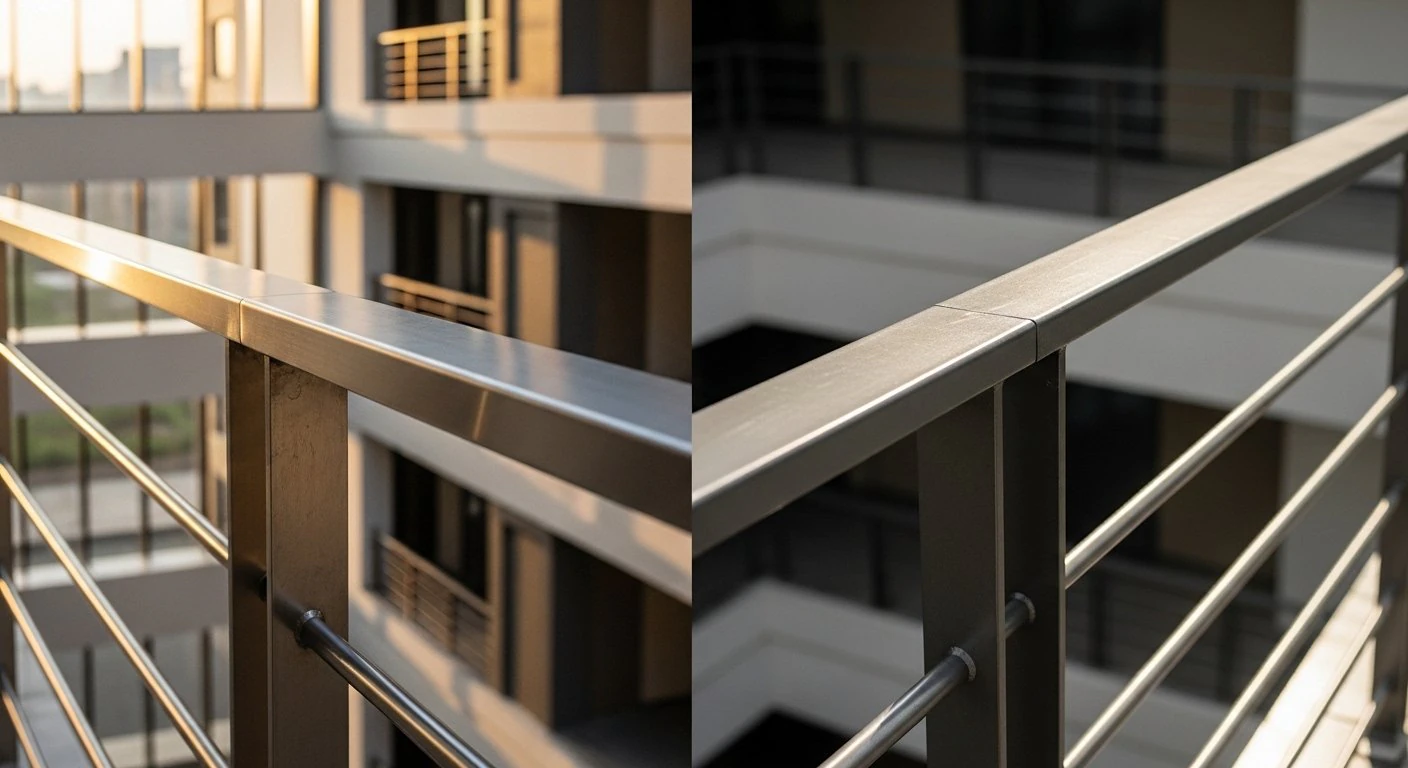

Sun Railings fabricates and installs wall-mounted and post-mounted grip rail systems at Jeedimetla Industrial Estate. 500+ commercial and institutional projects delivered across Hyderabad including L&T Metro Rail stations, GMR Hyderabad International Airport, hospitals, IT campuses, and educational institutions.
SS304 and SS316 systems comply with IS 875, NBC 2016, and CPWD specifications for commercial, institutional, and public building applications. IS 875 compliance calculations and NBC 2016 height compliance drawings provided for PMC approval.
→ Stainless Steel Railings Hyderabad · Staircase Railing · SS304 vs SS316 Guide
| System Type | Grade | Section | Fixing | Application |
|---|---|---|---|---|
| Wall-mounted SS handrail | SS304 | 38mm or 42mm round | SS304 brackets at 600mm centres | Staircase walls, hospital corridors, institutional buildings |
| Wall-mounted SS handrail (exterior) | SS316 | 42mm or 50mm round | SS316 brackets, anchor bolt fixing | External ramps, open staircases, coastal or poolside |
| Post-mounted continuous handrail | SS304 | 42mm or 50mm round | SS304 posts at 900–1200mm centres | Mezzanine edges, staircase landings, open stairs |
| Flat bar top rail (architectural) | SS304 or SS316 | 50×25mm or 60×30mm flat | Post or wall-mounted | Feature staircases, hotel lobbies, IT atriums |
| Double handrail (accessibility) | SS304 | 38mm round, 900mm and 750mm | Wall brackets both heights | Hospitals, government buildings, CPWD accessibility |
| Grab rail (clinical) | SS316 | 32mm round | Heavy-duty wall flanges | Hospital wards, clinical wet zones |
| Standard | Requirement | Application |
|---|---|---|
| NBC 2016 Part 4 | Handrail on stairways with 4+ risers. 900mm on flights, 1,000–1,200mm at landings | All commercial and institutional buildings |
| IS 875 Part 1 | 0.74 kN/m (residential) or 1.5 kN/m (public assembly) horizontal load | All structural handrail design |
| IS 875 | Post sizing, bracket design, anchor embedment for point loads | Post-mounted handrail systems |
| CPWD specifications | 42mm OD SS304 round handrail. Double rail (900mm + 750mm) for accessibility | Government buildings, PSU projects |
| NBC 2016 Accessibility | 38–50mm graspable diameter. Continuous rail extending 300mm beyond risers | All public and institutional buildings |
Sun Railings provides IS 875 compliance calculations and NBC 2016 height compliance drawings for all commercial and institutional handrail projects. CPWD specification compliance documentation provided for government projects.
Wall-mounted systems are specified wherever a solid structural wall runs parallel to the staircase flight — RCC or structural brick substrate required. Post-mounted systems are specified for open staircases, glass balustrade stairs, mezzanine edges, and open landings where no structural wall is present. For staircases over 1,500mm wide, NBC 2016 requires handrail on both sides.
All stainless steel is sourced to IS 6911 with mill test certificates confirming chemical composition. SS304 (04Cr18Ni10) for inland commercial applications. SS316 (04Cr17Ni12Mo2) for chloride-exposure environments.
