Factory-fabricated toughened glass railing systems for builders, developers, architects, PMC consultants, and institutional project teams. Frameless and semi-frameless IS 2553 systems manufactured at Jeedimetla since 1998 with compliance documentation for tender and handover.
What Are the Key Technical Specifications for SR-GR-01 Glass Railing Systems in Hyderabad?
SR-GR-01 glass railing systems from Sun Railings (Sun Corporation Fabricators & Engineers) are commercial guard and balustrade packages using IS 2553 toughened glass or IS 16613 laminated glass with SS304/SS316 hardware — factory-fabricated at the Jeedimetla Manufacturing Facility for builders, PMC consultants, and EPC teams across Hyderabad and pan-India programmes.
| Parameter | SR-GR-01 commercial specification |
|---|---|
| Product line | SR-GR-01 — frameless, semi-frameless, and SS post-and-glass glass railing |
| Glass | IS 2553 Part 1 toughened; IS 16613 laminated where fragment retention is required |
| Thickness | 10–15 mm per structural calculation; 12 mm minimum for frameless glass railing |
| Hardware | SS304 inland interior; SS316 exterior, pool, and humid zones |
| Fixing | Spigot, base shoe, U-channel, standoff, or post-and-glass per approved drawing |
| Standards | IS 2553, IS 16613, IS 875 Part 2, NBC 2016 Part 4 guard heights |
| Manufacturing | Jeedimetla Industrial Estate, Hyderabad — commercial railing manufacturer since 1998 |
Related systems: Frameless glass railings · SS glass balustrade · Staircase glass railing · Pool glass railing · About Sun Railings · Fabrication capabilities
SR-GR-01 Glass Railing System
SR-GR-01 is Sun Railings factory-fabricated commercial railing product line — drawing-based BOQ, IS structural coordination, NBC 2016 guard compliance and PMC submittal support from Jeedimetla, Hyderabad since 1998.
Related systems: SR-FG-01 frameless glass railing systems · SR-SG-01 SS balustrade and glass infill railing · SR-AL-01 aluminium glass railing systems · SR-SS-01 stainless steel railing systems
Download specification support: Fabrication capabilities & BOQ specification sheet · Request SR-GR-01 BOQ proposal
SR-GR-01 Glass Railing System — Commercial Applications
- Commercial towers & IT parks — podium, atrium and terrace guards with consultant BOQ alignment.
- Residential builders — phased balcony and corridor railing for multi-tower Hyderabad programmes.
- Hotels & hospitality — lobby, pool deck and circulation balustrades per NBC 2016.
- Institutional campuses — staircase, ramp and elevated walkway guards with IS 875 load coordination.
- Healthcare & metro — durable guard systems for high-traffic public circulation zones.
How Do PMC Teams Specify SR-GR-01 Glass Railing by Project Sector?
Sun Railings supplies SR-GR-01 glass railing across commercial and institutional sectors in Hyderabad and pan-India — developers, EPC contractors, government agencies, and facilities teams use the sector matrix below to align system type, glass make-up, SS grade, and fixing method before BOQ release. Specification always follows consultant-approved drawings; the table is a procurement starting point for architects, project managers, and PMC reviewers.
Sectors covered include high-rise residential towers, commercial offices, IT parks and SEZ campuses, metro and airport infrastructure, hospitals, universities, shopping malls, hotels, mixed-use developments, industrial and logistics facilities, data centres, and government/public buildings. Detailed rows appear in the technical specification matrix and SS304 vs SS316 procurement guide on this page.
Related: IT park glass railing · Hospital glass railing · Metro station railing · Commercial project portfolio · Request sector-specific BOQ
Sector Procurement Notes for Glass Railing on Commercial and Institutional Programmes
Developers and EPC contractors on high-rise residential towers and mixed-use developments typically split SR-GR-01 packages by wing — frameless sell-face balconies, SS post-and-glass on service stacks, and channel-system podium guards — with separate material approval submittals per zone. Procurement should align floor-wise dispatch to slab handover and lock repeating typologies after first-floor sign-off.
IT parks, SEZ campuses, and corporate office buildings specify glass railing on podiums, cafeteria terraces, and atrium voids. Interior dry zones accept SS304; exterior podium and plant-deck guards require SS316. Consultants on IT park programmes often pair frameless lobby features with semi-frameless circulation decks for cost control.
Infrastructure, metro, airport, and railway projects demand laminated glass (IS 16613), assembly-load documentation (IS 875), and SS316 fixings in wash-down or public assembly zones. Interface drawings with civil and façade contractors are procurement hold points before glass order. See Hyderabad Metro and metro station railing references.
Hospitals, universities, malls, hotels, and convention centres balance aesthetics with durability — laminated glass in public corridors, SS316 for infection-control wipe-down surfaces, and post-and-glass systems where panel replacement must not disturb structure. Government and public buildings add authority-review submittals and GeM-compatible BOQ formats on request.
Industrial facilities, manufacturing plants, warehouses, and data centres prioritise robust post-and-glass guards on mezzanines and staging decks; SS316 is specified only where chemical exposure or exterior humidity schedules apply. Maintenance plans focus on hardware torque checks and panel mark replacement rather than decorative polish cycles.
What Glass Types Does Sun Railings Specify for Commercial Glass Railing Projects?
Sun Railings SR-GR-01 glass railing packages use three principal glass categories — toughened safety glass (IS 2553 Part 1), laminated safety glass (IS 16613), and toughened laminated glass (IS 16613 with toughened plies) — selected from the consultant-approved guard schedule, not from catalogue defaults.
- Toughened glass (IS 2553 Part 1) — Heat-treated monolithic panels; primary infill for balcony glass railing, interior atrium guards, and staircase glass railing where fragment retention is managed by context. Typical thickness 10–15 mm per guard calculation.
- Laminated glass (IS 16613) — Two or more glass plies bonded with PVB interlayer (commonly 1.52 mm). Specified where post-breakage retention is on the safety schedule — hospital public zones, aviation circulation, and overhead-adjacent edges.
- Toughened laminated glass (IS 16613) — Toughened plies with PVB or approved interlayer; combines impact performance of toughened glass with fragment retention. Standard for airport concourses, assembly-facing terraces, and consultant-flagged high-safety zones on commercial towers.
| Glass type | Indian standard | Typical SR-GR-01 use |
|---|---|---|
| Toughened | IS 2553 Part 1 | Tower balconies, IT park lobbies, dry commercial corridors |
| Laminated | IS 16613 | Healthcare public circulation, feature stairs with retention requirement |
| Toughened laminated | IS 16613 | Aviation terminals, mall atria, coastal hotel podiums |
Related: Channel system glass railing · Balcony glass railing · SS304 vs SS316 guide
How Is Glass Thickness Selected for Commercial Glass Railing Balustrades?
Glass thickness for SR-GR-01 glass railing follows the approved guard structural calculation — panel width, fixing type, imposed load class per IS 875 Part 2, and NBC 2016 guard height — not a single catalogue thickness. Sun Railings issues thickness schedules on shop drawings before Jeedimetla glass order release.
General starting points used on Hyderabad commercial tower programmes (confirmed on consultant drawings):
| Application / system | Guard height (NBC 2016) | Typical glass thickness | Notes |
|---|---|---|---|
| Frameless balcony / podium | 1.0–1.1 m FFL | 12–15 mm toughened | 12 mm minimum for frameless glass railing on SR-GR-01 packages |
| Semi-frameless SS post + glass | 1.0–1.05 m | 10–12 mm toughened | Post centres reduce panel span — see SS glass railing |
| Staircase glass balustrade | 900 mm from nosing | 10–12 mm toughened | 15 mm where stair span or load tier requires — staircase glass railing |
| Atrium / void (laminated) | 1.05–1.1 m | 12–15 mm + PVB | IS 16613 toughened laminated where retention is specified |
| Pool / coastal exterior | 1.05 m typical | 12–15 mm + SS316 | Laminated or toughened per consultant — pool glass railing |
Related: Frameless glass railings · Glass vs SS railing comparison · Commercial project references
Which Glass Railing Fixing System Is Right for Commercial Balcony, Atrium, and Podium Guards?
SR-GR-01 glass railing fixing systems are named on the issued-for-construction typical detail — spigot (point-fixed), base shoe, U-channel (base channel), standoff, or post-and-glass — with one method locked per BOQ typology. Sun Railings fabricates hardware at Jeedimetla to match the consultant-approved fixing layout.
| Fixing system | How SR-GR-01 glass is supported | Typical commercial use | Glass / hardware |
|---|---|---|---|
| Spigot | SS316 point fittings at slab edge or stringer | Hotel lobbies, prestige atria, sell-face balconies | 12–15 mm toughened; SS316 |
| Base shoe | Continuous aluminium or SS shoe on slab | Podium terraces, long balcony runs | 12 mm+ toughened; structural silicone in shoe |
| U-channel / base channel | Continuous channel with glass set in silicone | Parapet, fascia-mounted terrace guards | 12 mm+; channel system |
| Standoff | Standoff buttons with through-glass or side mount | Exterior multi-storey faces, semi-frameless detail | 12 mm toughened; SS316 exterior |
| Post & glass | SS304/316 posts with clamped glass infill | Hospitals, malls, high-traffic corridors | 10–12 mm; SS glass balustrade |
Related: Frameless glass railings · Hospital glass railing · IT park glass railing · Fabrication capabilities
Which Indian Standards Apply to Commercial Glass Railing Design and Fabrication?
Sun Railings SR-GR-01 glass railing systems are documented against Indian standards referenced on architect and PMC guard schedules — IS 2553 (glass), IS 16613 (laminated glass), IS 875 (loads), NBC 2016 (heights and safety), and IS 6912 (stainless steel) — with compliance statements issued from the Jeedimetla Manufacturing Facility for commercial project handover.
| Standard | Scope on SR-GR-01 glass railing | Documentation supplied |
|---|---|---|
| IS 2553 Part 1 | Toughened safety glass for glass railing infill panels | Glass supplier compliance references on submittal |
| IS 16613 | Laminated and toughened laminated glass where specified | Make-up schedule with interlayer thickness |
| IS 875 Part 2 | Imposed horizontal loads on guards and balustrades | Load summary tied to approved typical section |
| NBC 2016 Part 4 | Minimum guard height (commonly 1.0 m residential balcony, 1.1 m commercial circulation) | Height statement on shop drawings |
| IS 6912 | SS304 / SS316 posts, shoes, spigots, and handrails | Mill test certificates (MTCs) on material submittal |
| IS 16231 (where applicable) | Aluminium alloy extrusions on hybrid packages | Extrusion and finish data when aluminium shoe is on BOQ |
Related: SS304 vs SS316 railing · Metro station railing documentation · About Sun Railings · Hyderabad Metro project
SS304 vs SS316 Procurement Guide — Glass Railing by Project Environment
Stainless steel grade selection for SR-GR-01 glass railing should follow exposure and maintenance plans on the architect schedule — not a single default for the whole campus. Sun Railings issues SS mill test certificates (IS 6912) matching the grade map on approved shop drawings.
- SS304 — Dry interior corridors, office lobbies, inland residential tower typologies, educational classroom wings, and warehouse office mezzanines where humidity and salt exposure are controlled.
- SS316 — Exterior balconies, pool and podium decks, airport and metro wash-down zones, coastal hotels, hospital wet areas, food courts, and any fixing within 5 km of marine exposure per consultant durability schedules.
- Mixed programmes — Split BOQ lines: SS304 on interior atrium rings, SS316 on podium and terrace guards; SS304 vs SS316 railing guide for tender notes.
Procurement managers should lock the grade map before glass order release — grade changes after panel marking drive rework on tower programmes.
Commercial Glass Railing Specification Matrix by Project Type
SR-GR-01 sector specification matrix — recommended system, glass, steel grade, and typical application for procurement managers, EPC contractors, and consultant teams. Confirm thickness, loads (IS 875), and heights (NBC 2016) on issued-for-construction guard details.
| Project type | Recommended system | Glass type | Steel grade | Typical application |
|---|---|---|---|---|
| High-rise residential towers | Semi-frameless or frameless balcony | 12 mm IS 2553 toughened | SS316 exterior / SS304 dry stack | Typical balcony guards, podium terrace — balcony glass |
| Commercial office buildings | Frameless atrium / SS post + glass | 12 mm toughened; laminated at voids | SS304 interior; SS316 lobby exterior | Lobby mezzanine, feature stair, terrace |
| IT parks | Frameless podium / semi-frameless circulation | 12 mm IS 2553 toughened | SS304 interior / SS316 exterior podium | Campus decks, cafeteria terraces — IT park railing |
| SEZ (Special Economic Zones) | Post-and-glass + frameless sell face | 12–15 mm toughened | SS316 export-facing elevations | Multi-tenant podium, campus bridges |
| Corporate campuses | Channel / base shoe terrace runs | 12 mm toughened | SS304/316 per exposure zone | Amenity decks, connecting bridges |
| Infrastructure projects | SS post + laminated glass | IS 16613 toughened laminated | SS316 | Concourse edges, ramp guards — Metro reference |
| Metro rail stations | Post-and-glass balustrade | 12–15 mm laminated | SS316 | Circulation bridges, concourse — metro railing |
| Airports | Spigot / standoff frameless | IS 16613 laminated + PVB | SS316 | Terminal circulation, mezzanine — aviation railing |
| Railway stations | SS post + glass / channel parapet | 12 mm laminated in public zones | SS316 | Footbridge guards, platform-adjacent architectural rails |
| Hospitals | Semi-frameless SS + glass | Laminated in public corridors | SS316 | Lobbies, ramps, podium — hospital railing |
| Educational institutions | Post-and-glass / staircase glass | 10–12 mm toughened | SS304 | Atrium voids, hostel balconies |
| Universities | Frameless + SS post hybrid | 12 mm toughened / laminated atria | SS304 interior / SS316 exterior | Auditorium galleries, campus terraces — IIT Bhilai |
| Shopping malls | Post-and-glass atrium balustrade | 12–15 mm laminated assembly zones | SS316 high-traffic public | Mall voids, escalator adjacency guards |
| Hotels & resorts | Frameless base shoe / spigot | 12–15 mm toughened or laminated | SS316 pool and facade | Pool deck, lobby, terrace — hotel railing |
| Convention centres | Channel + post-and-glass | IS 16613 laminated | SS316 | Assembly halls, pre-function circulation |
| Mixed-use developments | Zone-split: frameless retail podium + SS tower | Typology-specific per wing | SS316 podium / SS304 upper residential | Retail podium, residential tower, office wing |
| Industrial facilities | Robust post-and-glass | 12 mm toughened | SS304 / SS316 plant decks | Mezzanine edges, viewing galleries — industrial railing |
| Manufacturing plants | SS handrail + glass infill | 10–12 mm toughened | SS316 chemical/wash zones | Catwalks, platform guards per safety plan |
| Warehouses & logistics parks | Post-and-glass office mezzanine | 10–12 mm toughened | SS304 | Office overlook, loading bay adjacency guards |
| Data centres | SS post + glass (interior) | 10–12 mm toughened | SS304 dry controlled halls | Staging mezzanine, corridor guards — low humidity interior |
| Government buildings | Post-and-glass / channel system | 12 mm laminated public zones | SS316 entrance; SS304 upper floors | Public lobbies, ramp guards, CPWD-format submittals |
| Public buildings | Durable post-and-glass | IS 16613 laminated assembly areas | SS316 | Civic atria, museum voids, assembly circulation |
Standards on all sectors: IS 2553 / IS 16613 glass · IS 875 Part 2 imposed loads · NBC 2016 Part 4 guard heights · IS 6912 stainless steel MTCs. Fixing systems (spigot, base shoe, U-channel, standoff, post-and-glass) are locked per typology on shop drawings — see fixing systems comparison above.

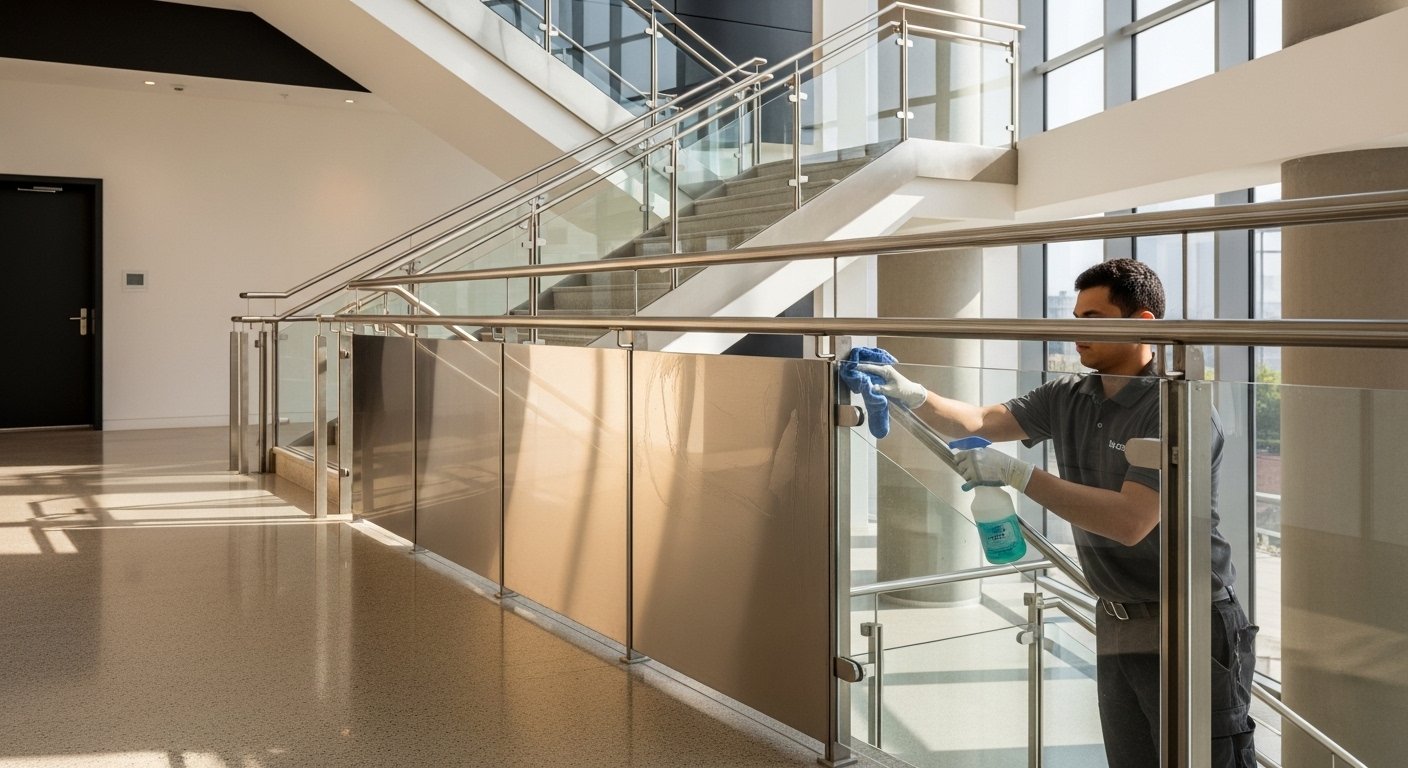

Maintenance note: Exterior SS316 and laminated panels in malls, airports, and coastal hotels need scheduled sealant and hardware inspection; interior SS304 zones follow facility O&M plans issued at handover.
Fabrication capabilities · Request sector matrix PDF on enquiry →
How Does Sun Railings Manufacture SR-GR-01 Glass Railing Systems at Jeedimetla?
SR-GR-01 glass railing manufacturing at Sun Railings Jeedimetla Manufacturing Facility follows drawing-controlled production — Sun Corporation Fabricators & Engineers holds panel sizes, hardware kits, and quality records against the PMC-approved shop drawing register before pan-India dispatch to commercial tower and institutional sites.
- Drawing intake — IFC guard elevations, typical balcony sections, and glass make-up schedule reconciled to BOQ line items.
- Glass order — Cut sizes released to IS 2553 / IS 16613 suppliers; edge polish and CNC notch layout per panel mark number.
- Metal fabrication — SS304 or SS316 posts, shoes, spigots, and handrails fabricated and passivated where exterior exposure is on the schedule.
- Hardware kitting — Gaskets, clamps, anchors, and standoff sets bagged per floor band and tower wing for site installation teams.
- Factory QA hold — Dimensional check against shop drawing, visual edge inspection, and crate labelling by panel mark before dispatch.
- Phased dispatch — Floor-wise crates aligned to slab handover on developer tower and IT park programmes.
Related: Commercial railing fabrication capabilities · Modular railing programmes · Microsoft Hyderabad project · Project portfolio
What Is the SR-GR-01 Glass Railing Installation Workflow on Commercial Sites?
SR-GR-01 glass railing installation follows consultant-approved method statements — Sun Railings supplies factory-fabricated panels and hardware kits from Jeedimetla; site fixing is by the main contractor or nominated installation team per tender scope. Workflow below applies across sectors with sector-specific hold points noted.
- Pre-install survey — Level survey after screed and edge tile completion; base plates shimmed to issued datum — glass panels are not field-cut for slab tolerance.
- Anchor installation — Base shoes, channels, spigots, or post base plates fixed per structural approval; torque values logged on metro, airport, and hospital programmes.
- Panel setting — Glass set by panel mark number; structural silicone in channels; gaskets and clamps torqued to shop drawing values.
- Handrail continuity — SS cap rail spliced at stairs and level changes per NBC 2016 handrail height from nosing.
- Sector interfaces — Metro/rail: coordinate with civil expansion joints. Airports/malls: night-work windows and assembly-zone barricades. Hospitals: infection-control dust protocols. Towers: floor-wise release tied to slab handover.
- Handover — As-built panel schedule, torque log, and O&M touchpoints for facilities teams.
Related: Railing contractor Hyderabad · Frameless glass railings · Channel system glass railing · Fabrication capabilities
What Quality Inspection Is Performed on SR-GR-01 Glass Railing Before Site Dispatch?
Sun Railings quality control on SR-GR-01 glass railing covers factory inspection before dispatch and documented hold points that PMC teams can align to material approval registers — separate from site installation inspection by the main contractor or nominated glass railing installation team.
| Inspection stage | What is checked | Record issued |
|---|---|---|
| Glass incoming QA | Supplier mark, thickness, edge finish vs schedule | Compliance reference on material submittal |
| Pre-dispatch dimensional | Panel width/height vs shop drawing; hole positions | Panel mark list per crate |
| Hardware kit audit | SS grade, finish, anchor type per typical detail | Kitting sheet matched to BOQ |
| Visual / edge QC | Chips, arris quality, coating damage | Factory QA sign-off before packing |
| Site readiness (prior to install) | Level survey after screed; base plate alignment | Method statement reference — install scope per contract |
Related: Railing contractor Hyderabad · Stainless steel railings · About Sun Railings engineering team
Where Can PMC Teams Download SR-GR-01 Glass Railing Specification and Checklist Documents?
SR-GR-01 downloadable resources for commercial glass railing tenders — specification sheets, checklists, and catalogue excerpts — are issued by Sun Railings on project enquiry. PDF packs are prepared against the approved guard schedule; links below route to enquiry and fabrication documentation until dedicated download pages are published.
| Resource | Contents | Access |
|---|---|---|
| Glass Specification Sheet (SR-GR-01) | Glass types, thickness tiers, SS grades, IS references | Request PDF on enquiry |
| Commercial Specification PDF | BOQ-ready technical datasheet for tender attachment | Request PDF on enquiry |
| Installation Checklist | Site fixing sequence, anchor torque, sealant points | Request PDF on enquiry |
| Inspection Checklist | Factory and pre-handover hold points for PMC QA | Request PDF on enquiry |
| Product Catalogue | SR-GR-01 system families and application photos | Fabrication capabilities overview |
| BOQ Specification Sheet | Line-item structure for metal, glass, and hardware | View fabrication & BOQ sheet |
Planned resource hub: Glass Guide · Engineering Standards · Installation Guide · Inspection Guide · Downloads — contact Sun Railings to receive current PDF revisions.
Related: Glass railing price factors · IIT Bhilai institutional project · Terrace glass guard systems
Sun Railings works with commercial builders, developers, architects, PMC consultants, EPC contractors, hotel and hospital facilities teams, educational institutions, IT park developers, and industrial facility contractors requiring specification-grade SS and glass railing systems with documented compliance.
IS 2553 Glass Railing Systems by Sun Railings
Quick links: SS railing Hyderabad
Sun Railings manufactures and installs glass railing systems at our factory in Jeedimetla Industrial Estate, Hyderabad since 1998. We fabricate semi-frameless SS balustrade systems, frameless spigot and base-channel balustrades, atrium void railing, and staircase glass handrails using IS 2553 toughened and laminated safety glass to IS 875 and NBC 2016 specifications.
Our glass railing systems are specified on IT parks, commercial towers, hospitals, hotels, educational campuses, retail developments, and industrial facilities across Hyderabad, Secunderabad, and the wider Telangana and Andhra Pradesh region. IS 2553 certification, structural calculation summaries, and compliance documentation supplied for PMC and building department submission.
Project-specific quotation based on drawings, BOQ and site conditions. Technical site visit within 24 hours. Also see: Frameless Glass Railings | SS Glass Railing Hyderabad | SS Railing Hyderabad
Sun Railings executes architectural railing systems across commercial typologies where specification control, compliance documentation, and phased delivery are project requirements.
→ IT park glass railing · Hospital glass railing · Hotel glass railing · Industrial railing Hyderabad
Glass Railing Systems We Manufacture
Commercial Spec
Architectural Finish
IS 875 Rated
Drawing-Based Fab
Architects and PMC consultants specify glass railing design based on four project variables: sightline and transparency requirements, fixing substrate and structural capacity, imposed load class per IS 875 Part 2, and glass thickness per IS 2553 structural calculation. This framework — consolidated from Sun Railings commercial project experience across Hyderabad — replaces standalone design-intent pages with a single hub specification reference.
Frameless design — glass panels fixed via SS316 spigots or base-channel shoes directly to slab or steel stringer. Specified for atriums, podiums and lobby mezzanines requiring maximum unobstructed views. Requires 12mm minimum toughened glass per IS 2553 structural calculation.

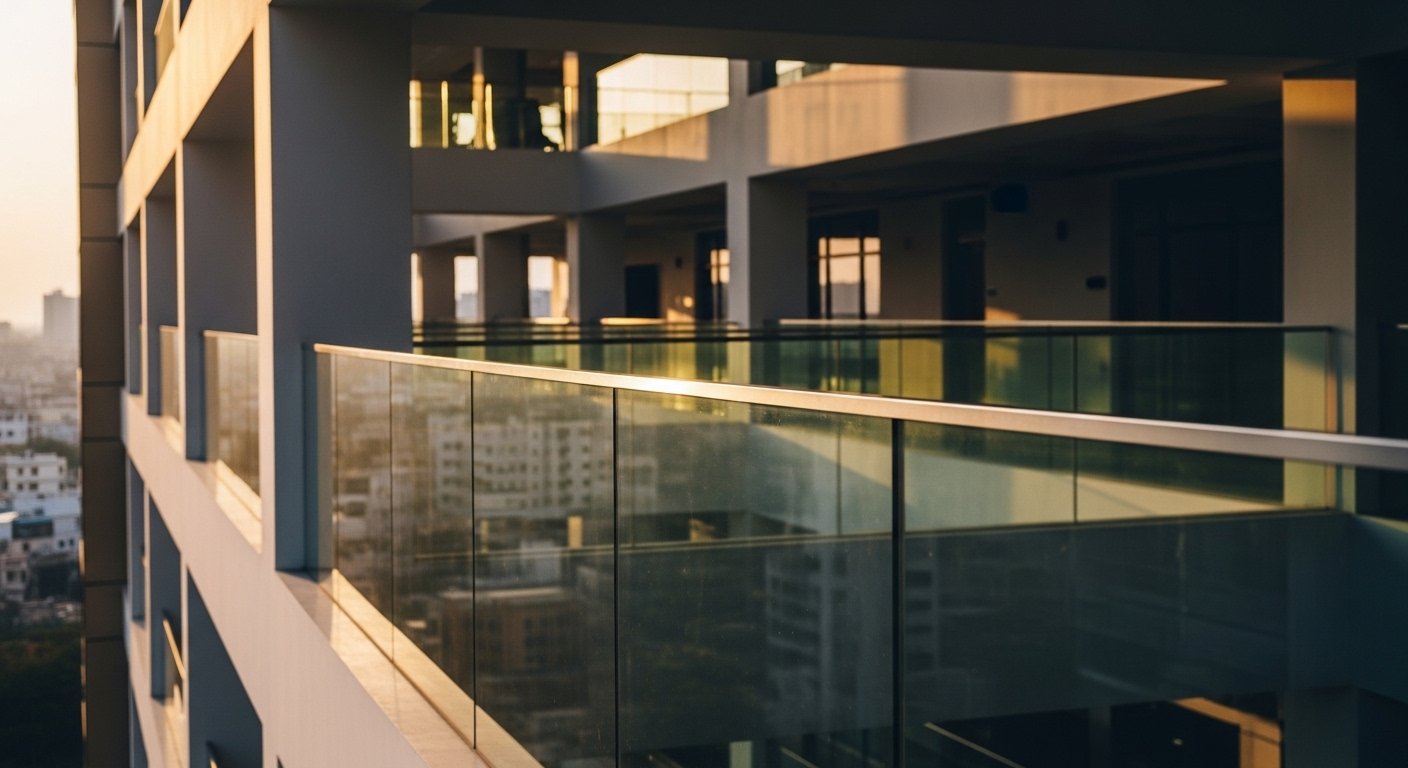

Semi-frameless design — slim SS304 or SS316 balustrades at 900–1200mm centres with 12mm toughened glass infill and optional SS top rail. Specified for commercial towers and institutional circulation where near-frameless aesthetics are required with balustrade-supported structural redundancy.
Balustrade-supported design — SS304 or SS316 balustrades at close centres with 10mm or 12mm toughened glass panels. Specified for high-traffic corridors, hospital wards and institutional staircases where consultant drawings require robust handrail assemblies.
Tinted and frosted design — clear glass replaced with tinted (grey, bronze, blue) or frosted privacy glass while retaining the same SS hardware specification. Specified for street-facing podiums, hotel terraces and privacy-screened circulation zones. Glass tinting is applied during manufacturing — only the infill specification changes.
Standard technical parameters for commercial glass railing design specification and tender datasheet preparation.
| Glass type | IS 2553 Part 1 toughened safety glass; laminated PVB where specified |
| Glass thickness | 10mm, 12mm, 15mm per structural calculation; 12mm minimum for frameless |
| Steel grade | SS304 standard; SS316 for exterior, pool and humid environments |
| Railing height | 1050mm minimum per NBC 2016; 900mm where code exception applies |
| Imposed load | IS 875 Part 2 — 0.74 kN/m horizontal load (standard balustrade class) |
| Finish options | Satin, mirror, hairline; PVD black and PVD gold on request |
| Compliance | IS 2553, IS 875, NBC 2016; GHMC and HMDA documentation on request |
Sun Railings supplies glass railing systems across commercial and institutional project typologies. Scope for commercial project proposals depends on consultant-approved specification, material grade, quantity, design complexity, site conditions, and installation scope.
Fabrication at Jeedimetla. Installation at project sites across Hyderabad, Telangana, and pan-India for commercial and institutional developments. Technical site visits within 24 hours of enquiry.
Hyderabad corridors: Gachibowli · HITEC City · Kondapur · Madhapur · Banjara Hills · Jubilee Hills · Kukatpally · Secunderabad · LB Nagar · Kompally · Manikonda · Shamshabad
→ Glass railing Gachibowli · Glass railing Hitech City · Glass railing Kondapur · Commercial railing manufacturer Hyderabad
Frameless Glass Railings · SS Glass Railing Hyderabad · Channel System Glass Railing · Staircase Glass Railing · SS Railing Hyderabad · Stainless Steel Railings Hyderabad · IT Park Railing · Hospital Railing · Hotel Railing · Glass vs SS Railing · SS304 vs SS316 Railing · Railing Contractor Hyderabad
Commercial Projects Delivered
Sun Railings has delivered glass railing systems across commercial and institutional developments where consultant-approved specification, IS 2553 compliance documentation, and phased site execution are programme requirements.
Glass Railing System Comparison
BOQ-ready comparison for architects and PMC teams selecting frameless, semi-frameless or curved glass balustrades on commercial projects in Hyderabad.
| Feature | Frameless | Semi-Frameless | Curved | SS + Glass Bundle |
|---|---|---|---|---|
| Glass thickness | 12–15mm toughened | 10–12mm toughened | 12mm bent toughened | 10–12mm glass infill |
| SS grade | SS316 channel/spigot | SS304/316 balustrades | SS316 balustrades | 50mm SS304/316 balustrades |
| Best application | Atrium, podium terrace | Staircase, commercial floor | Architect radius atrium | Staircases, corridors, commercial & institutional |
| NBC 2016 height | 1050mm standard | 1050mm standard | 1050mm per drawing | 1050mm standard |
| Related system | Frameless page | Staircase glass | Curved page | SS + glass page |
Glass Railing Projects Delivered in Hyderabad
Named commercial references for PMC and architect evaluation — IS 2553 glass systems with compliance documentation.
Glass Railing Price Factors – Hyderabad Commercial Projects
Commercial glass railing BOQ pricing varies by system type and project scope — Sun Railings issues drawing-based quotations for architects, PMC consultants and EPC contractors without publishing fixed rates online.
BOQ pricing depends on: glass thickness (10mm / 12mm / 15mm per IS 2553) · system type · SS304 vs SS316 grade · project size and tower phase count · installation complexity and site access
Related guides: Glass railing cost Hyderabad · Railing price per foot · Glass vs SS railing comparison
Glass Railing for Developer Tower & Commercial Projects
Sun Railings supports developer towers, IT parks, hospitals and mixed-use commercial campuses with phased glass railing execution from Jeedimetla — aligned to PMC programmes and contractor milestones.
See also: Glass railing balcony systems · IT park railing packages
Glass Railing Tender Documentation Checklist
Documentation supplied for architect, PMC and EPC tender submittals on commercial glass railing packages in Hyderabad.
Standard submittal package includes: IS 2553 glass test certificates · IS 875 compliance statements · SS304 / SS316 mill test certificates (MTCs) · consultant-approved shop drawings · BOQ schedules · installation method statements · material submittals for PMC approval
Related: Fabrication capabilities · Metro station railing documentation
SR-GR-01 — Commercial Project References
What Is Glass Railing? — SR-GR-01 Definition for PMC & EPC Teams
Glass railing is a commercial guard or balustrade assembly where toughened safety glass (IS 2553) or toughened laminated glass (IS 16613) provides fall protection with stainless steel posts, base shoes, patch fittings, or continuous channels. SR-GR-01 is Sun Railings factory-fabricated glass railing product line from Jeedimetla, Hyderabad — drawing-based BOQ, IS 875 load coordination, NBC 2016 guard compliance, and PMC submittal support for builders, developers, and EPC teams since 1998.
For SS balustrade-and-glass configurations, see SR-SG-01 stainless steel glass railing. For minimal-metal aesthetics, see SR-FG-01 frameless glass railing.
Glass Railing Projects in Hyderabad — Kokapet, Financial District & Gachibowli
Kokapet & Financial District Commercial Towers
Sun Railings supplies SR-GR-01 glass railing for multi-tower programmes in Kokapet and the Financial District — podium terrace guards, sky-lobby balustrades, and amenity-deck barriers. Packages include phased floor-wise dispatch, consultant BOQ reconciliation, and SS316 hardware at exterior podium levels where humidity and exposure demand marine-grade fixings.
Gachibowli & HITEC City IT Park Podiums
IT park developers across Gachibowli, Madhapur, and HITEC City specify glass balustrades on circulation decks, atrium voids, and feature staircases. Sun Railings executes IS 875-documented packages aligned to GHMC occupancy requirements — see IT park glass railing Gachibowli and glass railing Gachibowli locality reference. Reference: Microsoft Hyderabad campus railing.
GMR Hyderabad Airport & Aviation Glass Railing Projects
Airport Terminal & Aviation Circulation Guards
Aviation and airport-area projects require laminated toughened glass, SS316 fixings, and assembly-load guard documentation. Sun Railings supplies glass railing and balustrade packages for terminal circulation, concourse edges, and aviation infrastructure scopes — with material submittals for consultant and authority review. See airport railing Bhogapuram aviation and Hyderabad Metro glass railing project for transit-grade references.
Hospital & Healthcare Glass Railing — Hyderabad Programmes
Hospital Lobbies, Corridors & Podium Guards
Hospital and healthcare campuses specify SS316 balustrade-and-glass or semi-frameless guards on lobbies, ramp edges, and podium circulation — with laminated glass where post-breakage retention is required in public zones. Sun Railings supplies hospital glass railing systems with infection-control-grade SS316 hardware and PMC-ready submittals.
SR-GR-01 Glass Railing Specification Matrix — Hyderabad Commercial
Glass Type, Thickness & SS Hardware Grade
| Zone / application | Glass | Thickness | SS grade |
|---|---|---|---|
| Kokapet / Financial District podium | Toughened / laminated | 12–15 mm | SS316 exterior |
| Gachibowli IT park atrium | IS 2553 toughened | 12 mm typical | SS304 interior / SS316 exterior |
| Airport / aviation circulation | IS 16613 laminated | 12–15 mm + PVB | SS316 |
| Hospital public zones | Laminated toughened | 12–15 mm | SS316 |
IS 875 Load Coordination & NBC 2016 Guard Heights
Guard loads are coordinated per IS 875 Part 2 imposed load classes. NBC 2016 Part 4 typically requires 1.0 m residential balcony guards and 1.1 m commercial circulation guards — confirmed on architect section drawings before glass order release. Compare systems: glass vs SS railing comparison · SS304 vs SS316 railing guide · staircase glass railing systems.
PMC Documentation Pack — Glass Railing Submittals
- Consultant-approved shop drawings — Plans, elevations, post centres, glass panel schedules.
- Glass make-up schedule — IS 2553 / IS 16613 specification, thickness, interlayer where required.
- IS 875 load summary — Guard load class and fixing method statement.
- Material test certificates — SS MTCs (IS 6912), glass supplier compliance references.
- Installation method statement — Anchor type, torque values, sealant specification.
- As-built & O&M — Handover measurement sheets and maintenance schedule for facility teams.
Fabrication is executed at Jeedimetla after PMC approval — see glass railing fabrication Jeedimetla.
Consultants specifying visible SS balustrades with glass infill (not frameless) should use SR-SG-01 stainless steel glass railing — the dedicated product page for SS balustrade-and-glass BOQ, grade selection, and hospital/tower packages.
Where Glass Railing Packages Fit on Builder and EPC Programmes
On most commercial towers, glass guards are not a single product decision — they are a programme of repeating balcony typologies, podium edges, atrium rings and staircase landings that must stay consistent from drawing approval through phased handover. Sun Railings supplies SR-GR-01 glass railing packages from Jeedimetla for programmes where the PMC needs one manufacturer to hold BOQ line items, material grades and dispatch lots against the contractor schedule.
Typical scopes we see on tender drawings include:
- Residential towers — repeating balcony guards with SS balustrade-and-glass or frameless shoe details; often paired with modular railing lots when floor plates are identical.
- IT and corporate campuses — lobby balustrades, terrace guards and feature stairs; frameless glass runs where the architect wants minimal metal at double-height spaces.
- Hotels and retail podiums — circulation guards with higher assembly exposure; load class confirmed to IS 875 before glass order release.
- Institutional and transit edges — concourse and ramp guards referenced on infrastructure BOQs; see Hyderabad Metro Rail for transit-scale delivery patterns.
If your package mixes guard types on one project, we usually map each zone to a product line — SS glass balustrade, frameless, aluminium glass or SS-only guards — so the PMC receives separate submittal sets rather than one generic “glass railing” folder.
Glass, Metal and Fixings — What to Lock Before Fabrication Release
Material selection on glass guards should follow the environment and maintenance plan on the architect’s schedule, not a catalogue default. The table below is the starting point our estimators use when reconciling consultant BOQs.
| Zone / exposure | Metal | Glass (IS 2553) | When consultants choose it |
|---|---|---|---|
| Inland balcony, dry corridor | SS304 balustrades / top rail | 12 mm toughened | Standard builder towers; pairs with SR-SG-01 |
| Pool deck, coastal podium, hospitality atrium | SS316, passivated | 12–15 mm toughened; laminated where specified | Durability-led specs; frameless base shoe on premium faces |
| Cost-sensitive repeating bays | 6063-T5 aluminium shoe | 12 mm toughened infill | Aluminium glass railing on inland residential packages |
| Stair cores and egress | SS handrail + glass infill | 15 mm where span requires | Staircase glass railing packages with NBC handrail continuity |
Guard heights and imposed loads are taken from NBC 2016 Part 4 and IS 875 on the approved guard details — we do not substitute thickness or post spacing without a revised drawing from the structural or architectural consultant.
Documentation Checklist for Glass Railing Lot Approval
PMC teams usually ask for the same submittal set whether the project is a 20-floor tower or a single podium. We issue the following against the approved guard schedule:
- GA and shop drawings — Plan runs, post centres, glass panel sizes, base plate details and floor-wise lot numbers.
- BOQ reconciliation sheet — Metre rates with post, glass, hardware and typical fitting allowances aligned to tender lines.
- Material certificates — SS grade (IS 6912), glass compliance (IS 2553), aluminium extrusion and powder-coat data where applicable.
- Load and height statement — IS 875 guard load tier and NBC 2016 minimum guard height noted per zone.
- Method statement — Site fixing sequence, anchor type, sealant specification at shoe interfaces.
- Dispatch schedule — Phased crates marked by tower / wing / floor band for contractor programme alignment.
Request a package review via project enquiry or review fabrication capabilities before GFC issue.
Questions Commercial Buyers Ask Before Releasing a Glass Railing BOQ
Do you work from architect PDFs or only issued-for-construction DWG?
We prefer IFC drawings with guard elevations and typical balcony details. PDF-only packages are quoted as budgetary until panel sizes and post centres are confirmed on measurable sheets.
How are repeating floors handled on tower programmes?
We typify one typical floor, lock glass and hardware counts, then multiply by floor bands. Where floors differ only by length, bay modules are adjusted without re-specifying glass thickness.
Can frameless and balustrade-and-glass guards sit on the same project?
Yes. Lobby and podium zones often use frameless shoe details while typical floors use SS balustrade-and-glass. Each zone gets its own submittal set and BOQ section for PMC clarity.
What lead time should the contractor programme assume?
After drawing approval and advance confirmation, standard tower lots are typically 3–5 weeks to first dispatch, with floor-wise releases following slab handover. Curved or laminated make-ups add glass-processing time.
Is installation in your scope or supply-only?
We supply factory-fabricated systems pan-India. Installation is quoted separately when the contractor wants a single point of responsibility on site.
Related systems: Frameless glass railings · SS glass balustrade · Stainless steel railings · Staircase glass railings · Aluminium glass railings · Modular railing packages
Design Considerations for Glass Handrail and Balcony Glass Systems
Glass handrail assemblies on Hyderabad commercial towers combine guard function, facade transparency and maintenance access. The PMC usually separates glass railing for balcony typologies from interior atrium guards — each carries its own typical detail, hardware grade and cleaning method. Toughened glass balcony railing panels are sized from the approved plan grid, not adjusted on site after screed pours.
Corner balconies, setback terraces and combined stair-plus-balcony nodes need explicit shop drawing call-outs so post spacing and glass width do not default to a straight run template. Where the sell elevation uses frameless glass, upper service floors may reference aluminium glass railing or stainless steel glass railing on the material matrix. Wind direction on corner units often drives asymmetric post spacing — note prevailing exposure on the typical detail so repeat floors stay buildable without remeasure.
Height Requirements and Safety Standards
NBC 2016 sets minimum guard height from finished floor level — commonly 1.0 m on residential balconies and 1.1 m on many commercial circulation edges; project sheets may show 1,050 mm where the consultant applies institutional schedules. Handrail height along stairs is typically 900 mm measured from the nosing line.
Imposed loads on guards follow IS 875. Balcony glass handrail assemblies must be calculated in the consultant’s load category — 0.75 kN/m is a frequent starting point on residential towers; assembly-facing terraces may require higher tiers. Glass infill shall comply with IS 2553; laminated make-up where the safety schedule requires retention after breakage.
Material Selection Guide — Glass Railing Hyderabad Programmes
| System | Use case |
|---|---|
| Frameless toughened glass | Sell-face balconies and atria — see frameless glass railings. |
| SS post with glass infill | Robust public edges, hospital terraces, service balconies. |
| Channel / base shoe | Podium parapet and terrace — channel system glass railing. |
| Laminated glass | Overhead-adjacent, coastal and consultant-flagged safety zones. |
Consultant Checklist and PMC Documentation
- Architectural typical balcony and terrace sections with guard height and handrail continuity noted.
- Structural approval on base fixings and post reactions where required on the project.
- Glass and metal material approvals logged against the schedule before bulk fabrication.
- IS 2553 and SS grade certificates filed for authority and client QA audits.
- Floor-wise dispatch register aligned to slab handover from the main contractor.
Commercial Buyer Questions — Glass Railing for Balcony Projects
What information is needed for a tower glass handrail quote?
Typical balcony detail, floor count per typology, SS grade zones and glass make-up — plus podium versus typical floor split if systems differ.
How is toughened glass balcony railing inspected before dispatch?
Dimensional check against shop drawings, edge quality visual, and hardware kitting per panel mark number.
Does Sun Railings supply documentation for GHMC and client QA?
Submittal packages include NBC height statements, material certificates and as-built schedules suitable for PMC filing — scoped to the approved contract typologies.
How are glass handrail modules aligned to slab construction tolerances?
Site survey after screed and edge tile completion; base plates shimmed to the issued level survey — glass is not field-cut to absorb slab out-of-level.
Commercial Glass Railing Applications for Hyderabad and Pan-India Projects
Sun Railings supplies architectural railings and glass balustrade packages from Jeedimetla for builders, PMC teams and façade consultants who specify guard systems on commercial buildings rather than retail shop-front work. As a glass railing manufacturer serving Hyderabad and wider India programmes, scope covers factory fabrication, material submittals and floor-wise dispatch aligned to slab handover.
- High-rise towers — Typical balcony and void-edge frameless glass railings with IS 875 guard loads documented on sections.
- Commercial complexes and shopping malls — Atrium balustrades, escalator adjacency guards and podium glass railing runs.
- Hotels — Pool deck, terrace and lobby glass railing systems; SS316 hardware where humidity schedules apply.
- Hospitals — Circulation bridges and terrace guards with continuous handrail where NBC requires it.
- IT parks — Campus podium, cafeteria terraces and feature stair glass balustrade packages.
- Metro stations and airports — Platform-edge adjacent architectural railings coordinated with main contractor interfaces — see infrastructure project portfolio.
- Educational institutions — Hostel balconies, auditorium voids and external stair guards on institutional drawings.
Glass Railing Material Selection Guide
| Element | Specifier notes |
|---|---|
| Toughened glass | Primary infill per IS 2553 — 10–12 mm typical balcony spans; thickness from guard calculation not catalogue default. |
| Laminated glass | Where residual capacity after breakage is on the safety schedule — coastal hotels, overhead-adjacent edges. |
| Edge finish | Polished arris standard; pencil or flat polish per architect detail for clamp contact faces. |
| Loading | IS 875 imposed load category on consultant calculation — glass panel size follows approved structural or architectural guard sheet. |
| Safety | NBC 2016 guard heights, child-safe gaps and handrail continuity at level changes — not negotiated on site. |
Frameless vs Channel System Glass Railings
| Criteria | Frameless glass railing | Channel system glass railing |
|---|---|---|
| Appearance | Minimal metal at guard line — spigot or base shoe fixing | Continuous U channel or base shoe — parapet-grade clean base line |
| Typical use | Balconies, atria, sell-face towers | Podium, terrace parapet, fascia-mounted runs |
| Glass | Toughened or laminated per IS 2553 | Often 12 mm+ with structural silicone in channel |
| Related systems | Frameless glass railings | Channel system glass railings |
Hybrid tower programmes often combine stainless steel glass railings on service wings and aluminium profile glass on cost-optimised phases — each typology on its own shop drawing register.
Consultant and PMC Specification Checklist
- Drawings — Plan runs, typical sections, base fixing layout and expansion joint treatment.
- Glass specification — Thickness, toughened vs laminated, heat soak if required, edge polish standard.
- Structural calculations — Guard load per IS 875; post reactions and base plate approval where mandated.
- Fixing systems — Base shoe, U channel, post-and-glass or patch fitting — one method per typology on BOQ.
- Inspection — Dimensional check pre-glass order, site fixing torque log, handover panel schedule.
Procurement and Tender Considerations
Glass railing contractor scope on commercial tenders should separate supply, installation, material approval cycles and replacement glass stocking. Sun Railings issues BOQ lines per metre run or per panel after typical detail approval — manufacturing at commercial railing fabrication facility, installation either by nominated team or main contractor per contract split.
- Manufacturing — Panel sizes frozen after first floor sign-off on repeating typologies.
- Material approvals — Glass samples, SS grade map, hardware finish chips against architect schedule.
- Inspection hold points — Factory QA before dispatch; site survey after screed for base alignment.
- Dispatch — Crates marked by tower, wing and floor band for phased towers.
Commercial Buyer Questions — Glass Railing Supplier and Contractor Scope
How do glass railing manufacturers in India price tower packages?
Per-metre or per-panel rates after IFC typical detail — metal, glass and hardware as separate BOQ lines so PMC can track material escalation by component.
What is included in glass railing price per meter versus per sq ft?
Per metre run covers guard length at a defined height; per sq ft methods appear on façade BOQs — reconcile both to the same typical section before comparing supplier quotes.
Can one glass railing company supply multiple system types on a campus?
Yes — frameless balconies, channel podium and SS-post terraces can coexist with separate drawing registers and material approval submittals per zone.
What drawing issue is required before glass railing installation release?
Issued-for-construction typical details with guard height, fixing type and panel width — plus structural sign-off on base plates where the consultant requires it.
How are glass railing systems dispatched for Hyderabad high-rise sites?
Floor-wise crates aligned to slab handover; repeat floors use locked panel marks so site teams do not remeasure identical levels.
Does scope cover curved glass railing on feature stairs?
Curved panels are templated from approved shop drawings — priced separately from straight balcony modules on the BOQ.
What separates a glass railing supplier from a full installation contractor?
Supplier delivers fabricated modules and hardware; installation contractor adds site fixing, sealant and alignment — tender documents should state which party holds each line.
Related product systems: coastal glass railing Visakhapatnam · pool glass railing with SS316 hardware · apartment glass balcony guards · terrace glass guard systems · emergency exit staircase guards.
Glass Railings Hyderabad — Common Questions
What Sets Sun Railings Apart
Architects specifying curved atrium balustrades also review curved glass railing systems for custom-radius toughened glass packages.
Planning a Glass Railing Project?
Share your drawings or project requirements for technical review and manufacturing consultation.
For commercial, institutional or infrastructure glass railing projects
