Channel System Glass Railing — floor-mounted and fascia-mounted channels
Channel glass railing holds each glass panel in a continuous base channel, also called a base shoe or U-channel. The channel is either fixed on top of the slab or to the slab face. Spigots hold the same kind of panel at separate points, so a damaged panel is often easier to change. Aluminium and stainless channels are both fabricated; the profile, glass build-up and anchors come from the approved shop drawing. See how this sits with the other systems on the glass railings page.

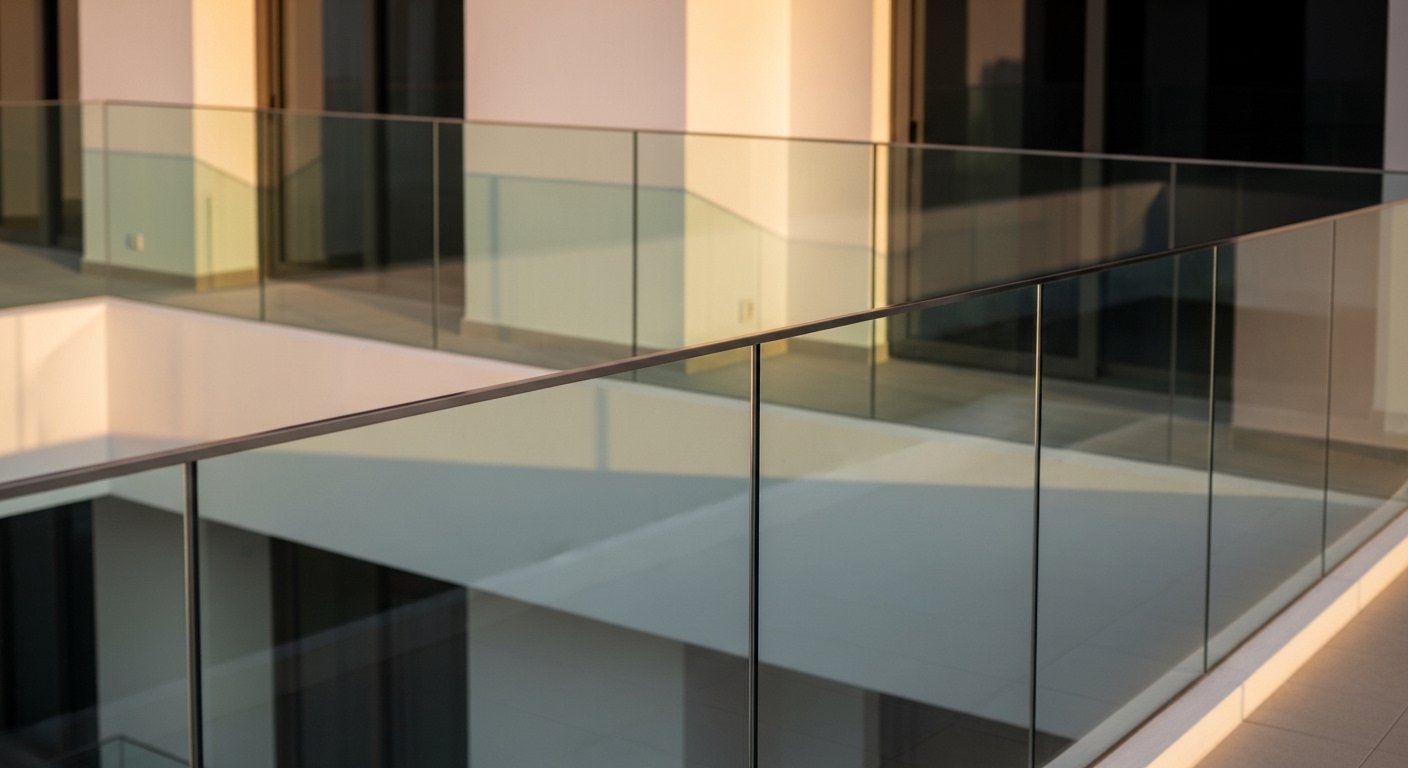

Channel system glass railing — concealed U-channel, zero visible fixings

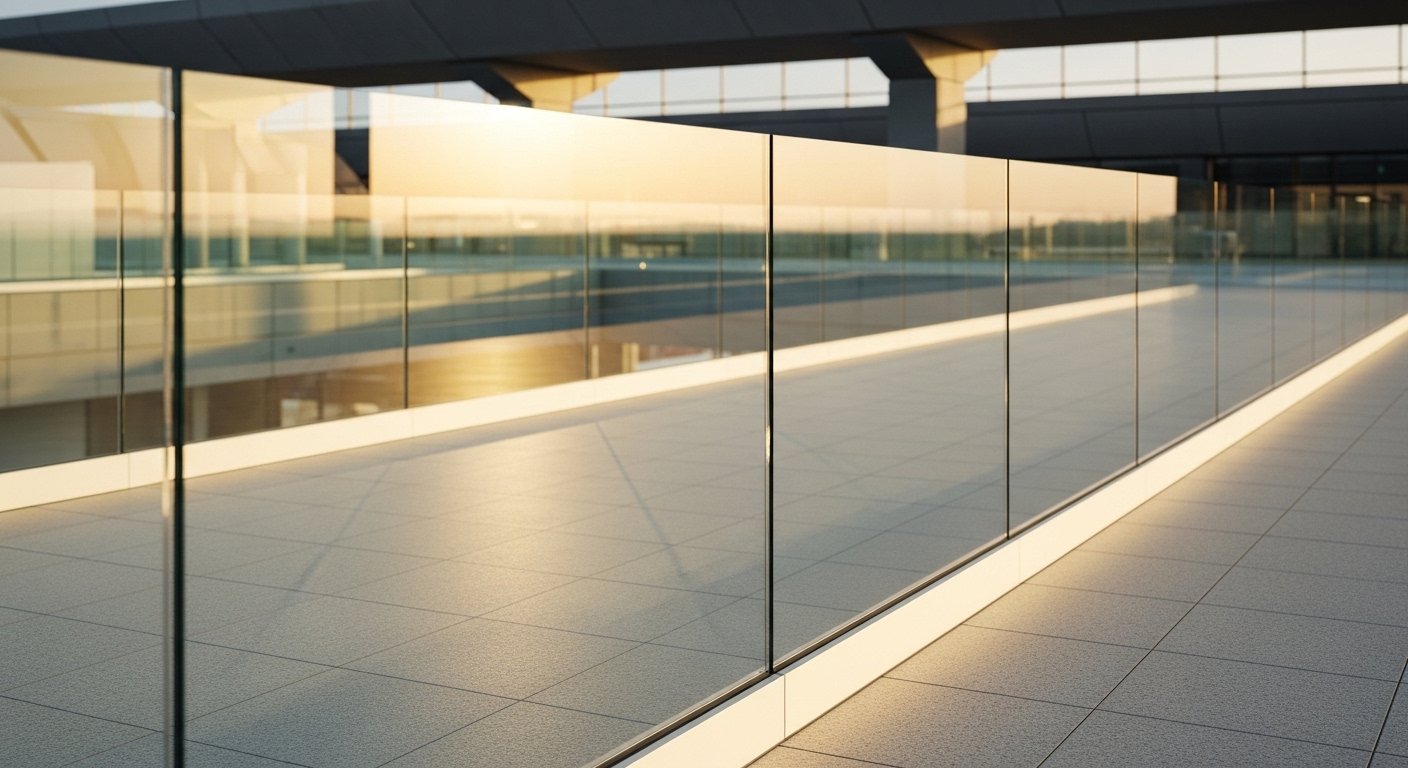

Floor-mounted channel system — LED-illuminated base track, SS304
U-channel base system — 12mm toughened glass, structural silicone sealed
Channel system glass railing — concealed U-channel, zero visible fixings
Floor-mounted channel system — LED-illuminated base track, SS304
U-channel base system — 12mm toughened glass, structural silicone sealed
Systems & Options
Floor-Mounted Channel System
SS304 or SS316 U-channel fixed flush to the floor slab. Glass panels set in structural silicone and PVC blocks. Ideal for balconies, terraces and mezzanines where the slab top is accessible.
Contact for drawing-based quote
Fascia-Mounted Channel System
Channel fixed to the vertical face of the slab edge. Used where floor space is limited or the architect wants a floating glass appearance. The slab face has to suit the channel and its anchors. That depth is confirmed on the detail.
Contact for drawing-based quote
Structural Glass Channel (SGC)
Heavy-duty 80mm or 100mm wide channel for wider panels. The panel width is confirmed on the drawing. Used in hotel lobbies, airport terminals and high-traffic commercial spaces. SS316 where the exposure needs it.
Contact for drawing-based quote
Technical Specifications
| Channel width | 60mm or 80mm standard |
| Channel material | SS304 or SS316 extruded |
| Glass thickness | Set on the shop drawing for the span and load |
| Glass panel width | Set on the panel schedule |
| Sealant | Structural silicone only where the approved detail requires it |
| Setting blocks | EPDM or neoprene |
| Railing height | Height on the approved drawing |
| Finish | Satin, mirror, PVD black, PVD gold |
| Standard | Shop drawings and glass processor certificates |
| Warranty | Only if the quotation states one |
Why Sun Railings?
Own factory since 2001
Jeedimetla, Hyderabad. Channels, cover plates and fittings are fabricated here and checked against the approved drawings before dispatch.
IS documents included
Shop drawings, stainless mill test certificates, glass processor certificates, and a method statement are submitted with the package.
500+ completed projects
Railing work is listed on the project portfolio. A project is named on this page only when that project page describes this fixing.
Commercial Application Guide — U Channel and Base Shoe Glass Railing
Aluminium profile glass railing in channel form is used where the guard must read as structural glass with minimal visible metal. U channel systems support the glass along the bottom edge; base shoe systems use a shallow aluminium or stainless shoe with concealed anchors. Both appear on podium parapets, terrace edges, hotel lobbies and airport circulation decks when the consultant specifies a glass parapet wall rather than post-and-rail infill.
Typical commercial matrices include: IT park podiums — continuous parapet runs with drainage slope accounted for in channel set-out; hospitality atria — fascia-mounted channel on slab edge; healthcare bridges — laminated glass where the safety schedule requires residual capacity; retail terraces — base shoe with powder-coated aluminium for inland humidity. Compare fixing approach with frameless glass railings when the elevation removes the top rail entirely.
System Comparison — Base Shoe vs U Channel
| Base shoe glass railing | Shallow shoe, glass seated on setting blocks; suited to slab-top mounting and faster panel replacement; common on balconies and standard commercial terraces. |
| U channel glass railing | Continuous channel with structural silicone; zero point fixings at glass base; preferred for glass parapet wall conditions and architecturally clean podium lines. |
| Structural glass balustrade | Engineered make-up — glass thickness and channel depth tied to IS 875 guard load; may require laminated glass and independent structural review. |
| Side-mounted channel | Fascia fix when slab edge cannot be channelled; anchor pattern and cover plate detail on shop drawings. |
Aluminium channel options are often paired with aluminium glass railing profiles on upper floors where the PMC splits systems by elevation band.
Glass Thickness Guide
Toughened glass per IS 2553 is standard infill. Panel thickness follows span, fixity and imposed load from IS 875 — not a single default across the project.
| 10 mm toughened | Short spans, post-assisted or top-rail-stabilised runs on low-traffic interior edges. |
| 12 mm toughened | Typical commercial balcony and podium channel runs up to consultant-approved span limits. |
| 15 mm / 19 mm toughened | Longer spans or higher load tiers on structural glass balustrade schedules. |
| Laminated make-up | Overhead, coastal or parapet conditions where the specification requires retained glass after breakage. |
PMC Documentation Checklist
- Typical channel or shoe section with anchor spacing, silicone spec and cover cap detail.
- Glass make-up approval — thickness, heat soak requirement if specified, edge polish standard.
- Structural submittal where glass acts as primary guard without continuous top rail.
- Inspection records — channel level survey, anchor torque log, silicone cure window before loading.
- As-built panel schedule and maintenance note for glass replacement sequence.
Consultant Specification Notes
Define whether the system is floor-mounted U channel, base shoe, or fascia-mounted channel. State SS304 vs SS316 for channel and cover plate in marine and pool-adjacent zones. Reference NBC 2016 guard height and IS 875 load category explicitly on the detail sheet. Require EPDM setting blocks and structural silicone brand approved by the glass fabricator — field substitution breaks warranty chains on structural glass balustrade work.
Commercial Buyer Questions
When should the PMC specify channel over base shoe?
Channel when the design requires concealed fixings along the full glass bottom edge; base shoe when slab-top economy and panel replaceability matter. The architect elevation usually decides — not the contractor on site.
How are channel systems priced?
Per metre run separating channel or shoe, glass, silicone and labour; heavy structural glass tiers priced after typical detail approval.
What drawings are needed before site marking?
Grid lines, slab edge offset, drainage fall direction and expansion joint locations — channel set-out follows the architectural plan, not approximate string lines.
Commercial Glass Railing Applications — Channel and Base Shoe Systems
Channel system glass railing is specified where the guard must read as a continuous glass parapet with minimal visible fixings at the slab edge. Sun Railings supplies U channel and base shoe glass balustrade packages for commercial buildings, hospitality podiums and institutional terraces — documented for PMC approval alongside glass railings programmes in Hyderabad.
- High-rise towers — Podium and amenity terrace parapet runs.
- Hotels and shopping malls — External terrace and multi-level deck guards.
- Hospitals and IT parks — Circulation deck edges with NBC 2016 heights on drawings.
- Metro stations and airports — Feature parapet zones coordinated with civil interface drawings.
- Educational institutions — Assembly hall roofs and bridge links.
Glass Railing Material Selection Guide
| Toughened glass (IS 2553) | 12 mm typical channel spans; thickness from IS 875 guard load on consultant sheet. |
| Laminated glass | Coastal hotels, overhead-adjacent and consultant-flagged safety zones. |
| U channel | Continuous bottom support — structural silicone seal per approved brand schedule. |
| Base shoe | Slab-top mounting with setting blocks; faster panel swap on standard balconies. |
| Edge finish | Polished long edges for channel seating; no field grinding after toughening. |
| SS hardware | SS304 inland; SS316 coastal and pool-adjacent channels. |
Frameless vs Channel System Glass Railings
| Criteria | Frameless / spigot | Channel system |
| Base appearance | Point fixings or discrete shoes | Continuous channel — zero point fixings along glass bottom |
| Parapet suitability | Moderate length balcony runs | Long podium and terrace parapet walls |
| Installation | Per-panel set-out | Channel level survey, anchor type and spacing on the approved detail, silicone cure window |
| Reference | Frameless glass railings | This system |
Consultant and PMC Specification Checklist
- Typical channel or shoe section with anchor spacing and cover cap detail.
- Glass specification — thickness, toughened vs laminated, heat soak if listed.
- Structural calculation where glass participates as guard without continuous rail.
- Fixing: floor-mounted vs fascia-mounted channel — separate BOQ lines.
- Inspection: channel level, anchor torque, silicone cure before loading.
Procurement and Tender Considerations
Channel system glass railing on commercial tenders should state supply scope — channel extrusion, glass, silicone, fasteners and cover plate — separately from commercial railing fabrication and site installation. Material approvals precede glass order release; dispatch phased to terrace handover.
- Manufacturing release after IFC typical detail.
- Installation method statement for main contractor or nominated fixer.
- Factory QA and optional third-party inspection.
- Crates marked by terrace zone or podium segment.
Project portfolio for podium and hospitality parapet references. Aluminium glass railing on upper tower bands where channel is not required.
Commercial Buyer Questions
When should PMC specify U channel over base shoe?
Channel for full-width parapet and concealed fixings; base shoe for standard balcony economy and replaceable panels.
How is channel system glass railing priced?
Per metre run with separate glass and hardware lines after typical detail approval.
What drawings are required before channel set-out?
Slab edge offset, drainage fall, expansion joints and grid lines — not approximate string lines.
Can channel and frameless coexist on one tower?
Yes — podium channel, typical floors frameless glass railings; separate registers per zone.
What certificates accompany dispatch?
IS 2553 glass compliance, SS grade statement, dimensional inspection sheet.
How does channel compare to stainless steel glass railing cost?
Different fixing philosophy — compare at same guard height and glass thickness on BOQ, not lump sum per floor.
Is site installation included in supplier scope?
Confirm on tender — supply-only versus supply-and-fix changes labour and warranty lines.
What NBC and IS code references apply to channel glass parapet?
NBC 2016 guard height on section; IS 875 imposed load on calculation; IS 2553 for toughened or laminated make-up — cited on submittal cover sheet for PMC filing.
How do channel system packages align with shopping mall terrace handover?
Dispatch phased to terrace waterproofing completion; channel set-out survey after screed fall is confirmed — avoids rework when drainage slope differs from early architectural assumption.
What glass railing contractor interfaces apply on airport podium packages?
Civil completion certificate before channel drilling; expansion joint location on plan before anchor layout — Sun Railings issues method statement for infrastructure project coordination with airside road contractors.
How should consultants specify glass thickness on channel parapet BOQ?
Thickness tied to IS 875 guard load and span — state toughened monolithic or laminated make-up explicitly; avoid generic 12 mm line without calculation reference on drawing.
When is stainless steel glass railing specified instead of channel on the same campus?
Heavy public terraces and hospital edges with continuous handrail — see stainless steel glass railings; pipe guards without glass on stainless steel railings service decks.
Frequently Asked Questions
Send drawings for a channel quotation
Share the slab-edge drawing, the glass schedule and whether the channel is floor-mounted or fixed to the slab face. The quotation follows that detail.
