Top Mounted Glass Railing — Post-Top Glass Clamp Systems — SS304 & SS316
Top mounted glass railing uses stainless steel posts fixed to the top of the slab with glass panels clamped between or alongside the posts using glass clamp fittings. A cost-effective alternative to full frameless systems — easier to install and simpler to replace individual glass panels.
Top mounted glass railing is the practical middle ground — the glass is real, the look is clean, but the hardware is visible as small SS glass clamps at the post tops. It's significantly more economical than a full frameless system and much faster to install on an existing slab because there's no cutting or coring required. The glass is 12mm toughened standard — we can also do laminated if you need it. Hardware finish options include satin SS304, mirror SS316, anodised aluminium channels, or PVD black and gold. We'll show you samples before you decide.
Top-mounted glass railing — side clamp system, outdoor corridor installation
Post-top glass railing — multi-floor atrium with SS handrail
Top-mounted system — SS glass clamp fittings, SS304 hardware close-up

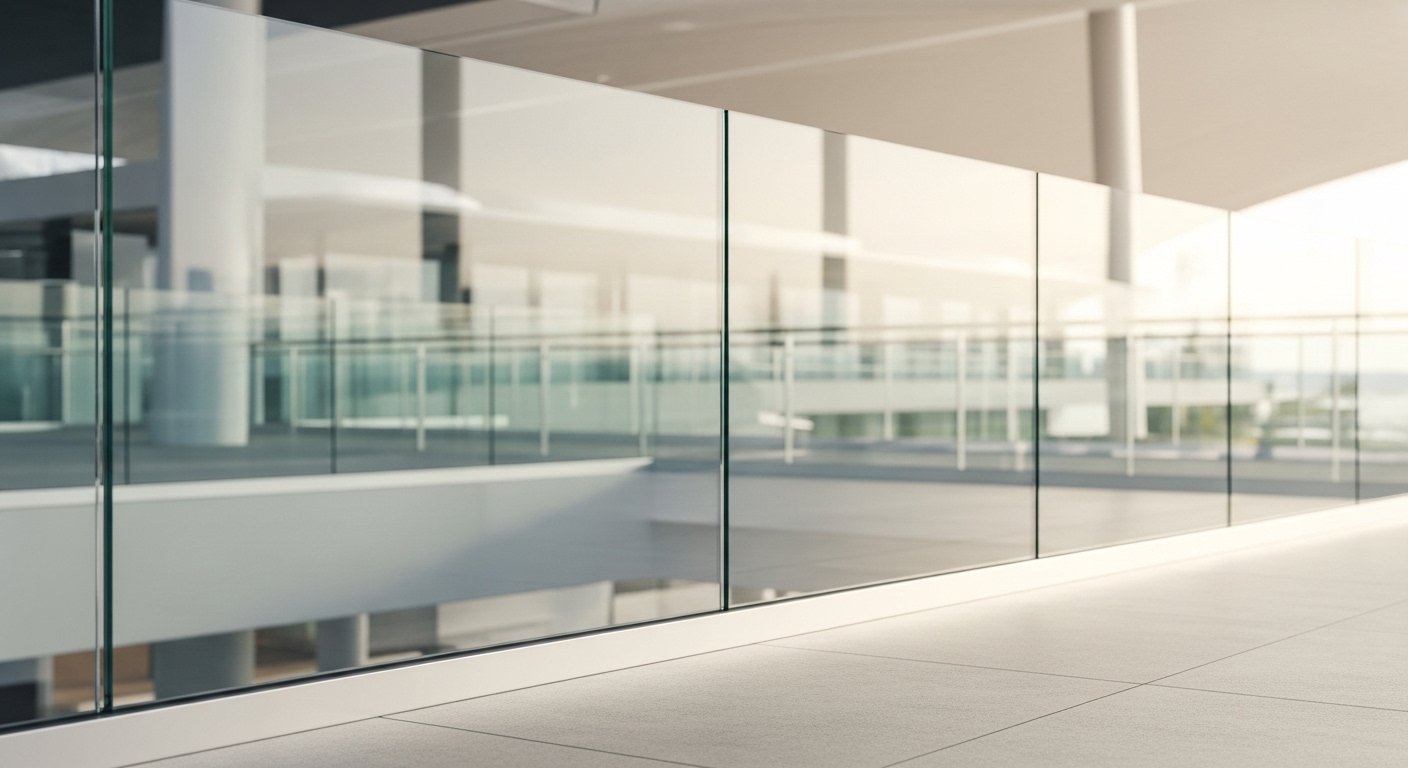

Top-mounted glass railing — side clamp system, outdoor installation

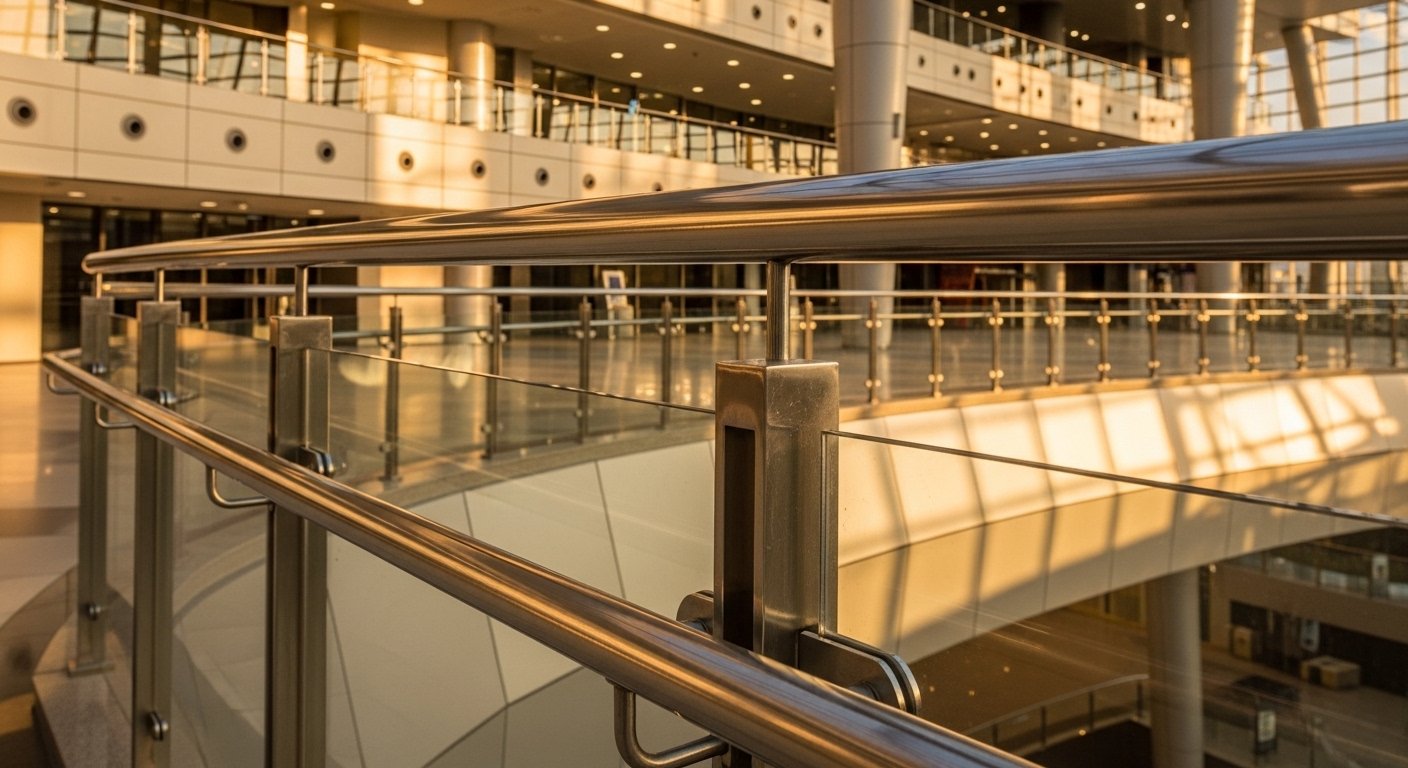

Post-top glass railing — multi-floor atrium installation with SS handrail
Top-mounted system close-up — SS glass clamp fittings, SS304 hardware
Systems & Options
Side-Mount Glass Clamp System
SS posts fixed to the slab surface with glass panels clamped to the side of each post using adjustable SS glass clamps. Most popular top-mounted configuration. No core drilling required — surface fixing only.
Contact for drawing-based quote
Between-Post Glass Panel System
Glass panels installed between SS posts with rubber-lined SS clamps top and bottom. Panels fully supported on all edges. More structural than side-mount. Preferred for commercial balconies above 6th floor.
Contact for drawing-based quote
Post-Top with SS Top Rail
Top-mounted posts with an SS top rail running through or over the posts and glass panels hanging below. Combines handrail functionality with glass infill aesthetics. Common in staircase applications.
Contact for drawing-based quote
Technical Specifications
| Post material | SS304 or SS316 |
| Post base fixing | Surface mount chemical anchor |
| Glass clamp type | Adjustable SS304 or SS316 |
| Glass thickness | 12mm toughened |
| Post spacing | 1000 to 1200mm centres |
| Railing height | 1050mm min NBC 2016 |
| Top rail | 42mm OD SS optional |
| Finish | Satin, mirror or PVD |
| Standard | IS 2553, NBC 2016 |
| Warranty | 5 years structural |
Why Sun Railings?
Own factory since 2001
Jeedimetla, Hyderabad. Direct manufacturing — no middlemen. Better quality control and 15 to 20 percent lower cost than resellers.
IS documents included
IS 875, IS 2553, NBC 2016 structural certificates and GHMC-format drawings included in every project. No extra charge.
500+ completed projects
Bhogapuram Airport, GMR Airport, L&T Metro, AIIMS Mangalagiri, IIT Hyderabad, IIT Bhilai, IKEA, Microsoft. 4.7 star Google rating.
Frequently Asked Questions
Request a Technical Site Visit
Our engineering team visits your project site for measurement and specification. Drawing-based quotation with clear scope for project billing.
